VEME 2023 NGS Variant Calling Tutorial

Taylor K. Paisie

CDC - Bacterial Special Pathogens Branch (BSPB)

Email: tpaisie91@gmail.com

https://taylorpaisie.github.io/VEME_2023_NGS_Variant_Calling/

Directory visualization

Structure of the directories for the variant calling tutorial

Command line cheat sheet

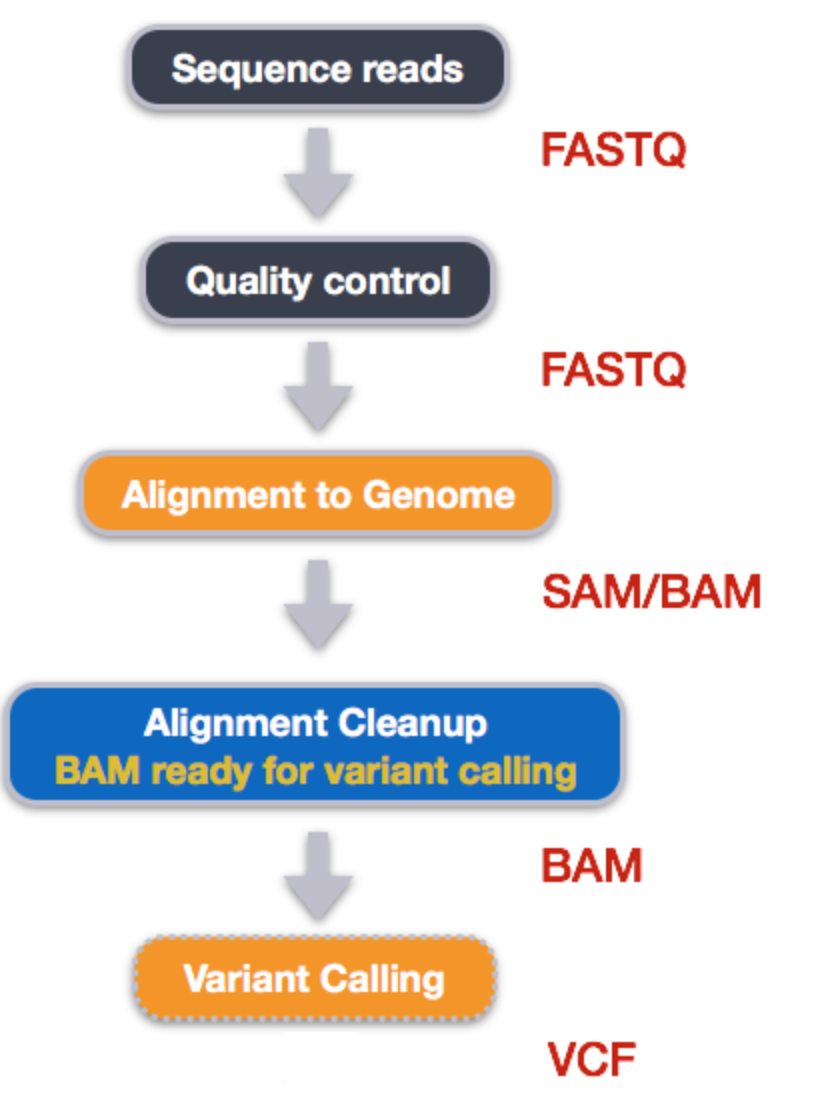

Variant Calling Workflow

1. Background and Metadata

What is Variant (or SNP) Calling?

Variant calling is the process of identifying and cataloging the differences between the observed sequencing reads and a reference genome

Variants are usually determined from alignments or BAM files Typical variant calling process:

  1. Align reads to the reference genome
  2. Correct and refine alignments
  3. Determine variants from the alignments
  4. Filter the resulting variants for the desired characteristics

In the variant calling process you will run into terminologies that are not always used consistently

We will attempt to define a few of these terms while making a note that these definitions are not “textbook” definitions designed to accurately capture the proper terminology

2. Assessing Read Quality

Variant Calling Workflow
  1. Downloading SRA files:
    • Make a directory to download fastq files:
      $ mkdir -p ~/variant_calling/data/untrimmed_fastq
      $ cd ~/variant_calling/data/untrimmed_fastq
    • Download fastq files:
      $ curl -O ftp://ftp.sra.ebi.ac.uk/vol1/fastq/SRR197/007/SRR1972917/SRR1972917_1.fastq.gz
      $ curl -O ftp://ftp.sra.ebi.ac.uk/vol1/fastq/SRR197/007/SRR1972917/SRR1972917_2.fastq.gz
      $ curl -O ftp://ftp.sra.ebi.ac.uk/vol1/fastq/SRR197/008/SRR1972918/SRR1972918_1.fastq.gz
      $ curl -O ftp://ftp.sra.ebi.ac.uk/vol1/fastq/SRR197/008/SRR1972918/SRR1972918_2.fastq.gz
      $ curl -O ftp://ftp.sra.ebi.ac.uk/vol1/fastq/SRR197/009/SRR1972919/SRR1972919_1.fastq.gz
      $ curl -O ftp://ftp.sra.ebi.ac.uk/vol1/fastq/SRR197/009/SRR1972919/SRR1972919_2.fastq.gz
      $ curl -O ftp://ftp.sra.ebi.ac.uk/vol1/fastq/SRR197/000/SRR1972920/SRR1972920_1.fastq.gz
      $ curl -O ftp://ftp.sra.ebi.ac.uk/vol1/fastq/SRR197/000/SRR1972920/SRR1972920_2.fastq.gz
  2. Let’s take a look at one of our fastq files:
    • In order to view our the fastq file, we must decompress it:
      $ gunzip SRR1972917_1.fastq.gz
    • We can view the first complete read in one of the files our dataset by using head to look at the first four lines:
      $ head -n 4 SRR1972917_1.fastq
    • Output:
@SRR1972917.1 1/1
TCCGTGGGGCTGGTACGACAGTATCGATGAGGGTGGACGCTTCAAGGTCAAGCGTATACAGGTCAACCCCAAAGCTAGCCTGAGCCTTCAGAAACACCACC
+
@CCFDDFFHGHHHGIJJIIJJJJGJJJJGIJIJJFIJJJIIJJJJHHFHHFFFFAADEFEDDDDDDDDDDDD??CCCDDDDDDCCCDDCCCDD:?CABDDB

Quality encoding: !"#$%&'()*+,-./0123456789:;<=>?@ABCDEFGHIJ
             |         |         |         |         |
Quality score: 01........11........21........31........41

$ gzip SRR1972917_1.fastq

  1. Assessing read quality using FastQC
    • FastQC has a number of features which can give you a quick impression of any problems your data may have, so you can take these issues into consideration before moving forward with your analyses
    • Rather than looking at quality scores for each individual read, FastQC looks at quality collectively across all reads within a sample
    • The x-axis displays the base position in the read, and the y-axis shows quality scores
    • For each position, there is a box-and-whisker plot showing the distribution of quality scores for all reads at that position
    • The horizontal red line indicates the median quality score and the yellow box shows the 1st to 3rd quartile range
    • This means that 50% of reads have a quality score that falls within the range of the yellow box at that position
    • The whiskers show the absolute range, which covers the lowest (0th quartile) to highest (4th quartile) values
      *The plot background is also color-coded to identify good (green), acceptable (yellow), and bad (red) quality scores

    $ fastqc -h
    $ fastqc *.fastq*

    • Output should look like this:
      application/gzip
 Started analysis of SRR1972917_1.fastq.gz
 Approx 5% complete for SRR1972917_1.fastq.gz
 Approx 10% complete for SRR1972917_1.fastq.gz
 Approx 15% complete for SRR1972917_1.fastq.gz
 Approx 20% complete for SRR1972917_1.fastq.gz
 Approx 25% complete for SRR1972917_1.fastq.gz
 Approx 30% complete for SRR1972917_1.fastq.gz
 Approx 35% complete for SRR1972917_1.fastq.gz
 Approx 40% complete for SRR1972917_1.fastq.gz
 Approx 45% complete for SRR1972917_1.fastq.gz
 Approx 50% complete for SRR1972917_1.fastq.gz
 Approx 55% complete for SRR1972917_1.fastq.gz
 Approx 60% complete for SRR1972917_1.fastq.gz
 Approx 65% complete for SRR1972917_1.fastq.gz
 Approx 70% complete for SRR1972917_1.fastq.gz
 Approx 75% complete for SRR1972917_1.fastq.gz
 Approx 80% complete for SRR1972917_1.fastq.gz
 Approx 85% complete for SRR1972917_1.fastq.gz
 Approx 90% complete for SRR1972917_1.fastq.gz
 Approx 95% complete for SRR1972917_1.fastq.gz
 Analysis complete for SRR1972917_1.fastq.gz

    • Lets now look at the files created by FastQC:
      $ ls -al

    • For each input FASTQ file, FastQC has created a .zip file and a .html file
    • The .zip file extension indicates that this is actually a compressed set of multiple output files
    • The .html file is a stable webpage displaying the summary report for each of our samples
    • We want to keep our data files and our results files separate, so we will move these output files into a new directory within our results/ directory

$ cd ~/variant_calling
$ mkdir -p results/fastqc_untrimmed_reads
$ mv ~/variant_calling/data/untrimmed_fastq/*.zip ~/variant_calling/results/fastqc_untrimmed_reads
$ mv ~/variant_calling/data/untrimmed_fastq/*.html ~/variant_calling/results/fastqc_untrimmed_reads
$ cd ~/variant_calling/results/fastqc_untrimmed_reads

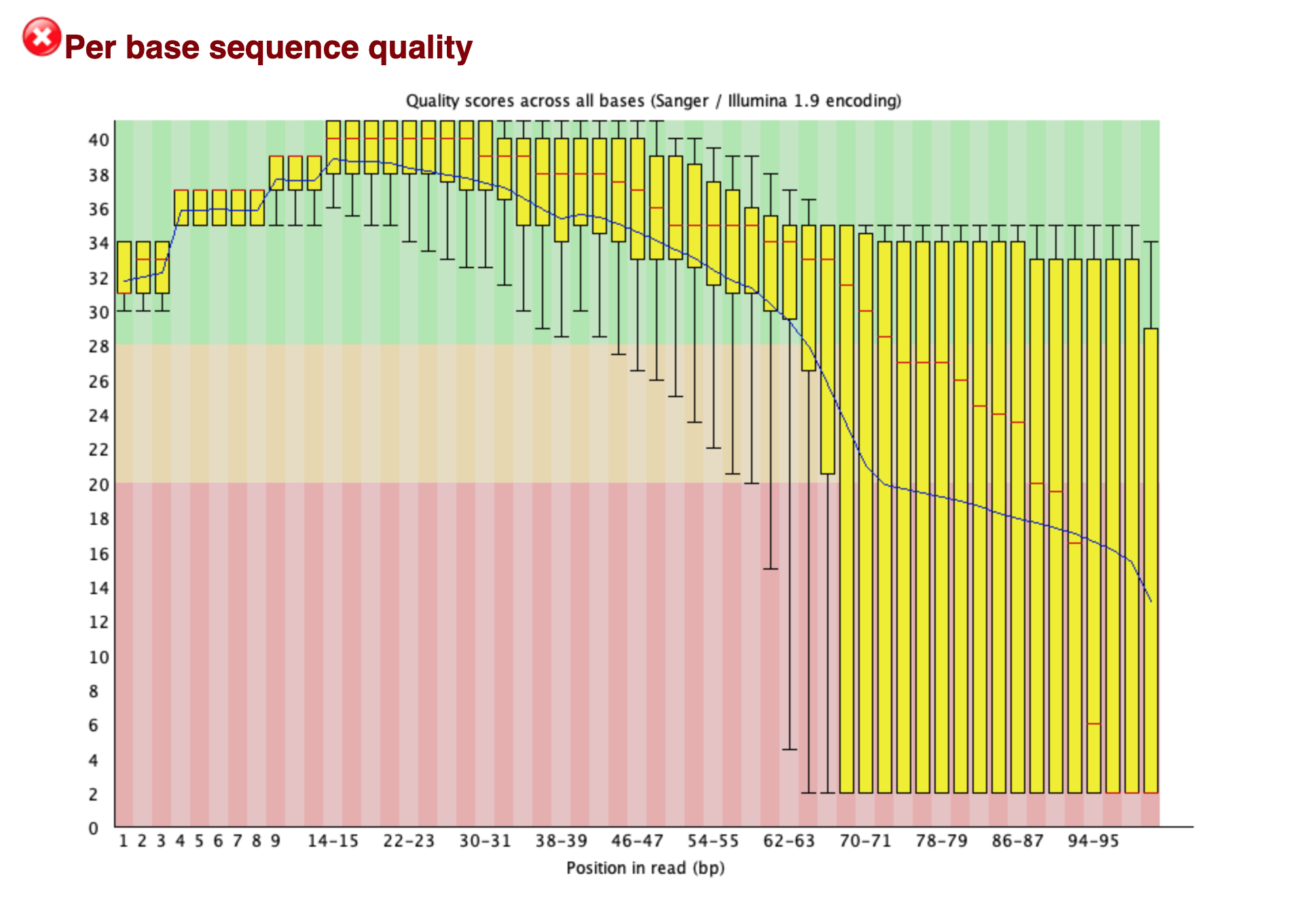

FastQC output of SRR1972917_1.fastq.gz

3. Trimming and Filtering

  1. Trimming the bad quality reads from our fastq files
    • In the previous episode, we took a high-level look at the quality of each of our samples using FastQC
    • We visualized per-base quality graphs showing the distribution of read quality at each base across all reads in a sample and extracted information about which samples fail which quality checks
    • It is very common to have some quality metrics fail, and this may or may not be a problem for your downstream application
    • For our variant calling workflow, we will be removing some of the low quality sequences to reduce our false positive rate due to sequencing error
    • We will use a program called Trimmomatic to filter poor quality reads and trim poor quality bases from our samples
$ trimmomatic`
    Usage:
       PE [-version] [-threads <threads>] [-phred33|-phred64] [-trimlog <trimLogFile>] [-summary <statsSummaryFile>] [-quiet] [-validatePairs] [-basein <inputBase> | <inputFile1> <inputFile2>] [-baseout <outputBase> | <outputFile1P> <outputFile1U> <outputFile2P> <outputFile2U>] <trimmer1>...
   or:
       SE [-version] [-threads <threads>] [-phred33|-phred64] [-trimlog <trimLogFile>] [-summary <statsSummaryFile>] [-quiet] <inputFile> <outputFile> <trimmer1>...
   or:
       -version

  1. Running Trimmomatic:

    • Move to the correct directory with untrimmed fastq files we downloaded:
      $ cd ~/variant_calling/data/untrimmed_fastq

    • Copy Illumina adapters from Trimmomatic into working directory:
      $ cp /usr/local/share/Trimmomatic-main/adapters/NexteraPE-PE.fa .

    • Run Trimmomatic:

    $ java -jar /usr/local/share/Trimmomatic-main/dist/jar/trimmomatic-0.40-rc1.jar PE SRR1972917_1.fastq.gz SRR1972917_2.fastq.gz SRR1972917_1.trim.fastq.gz SRR1972917_1un.trim.fastq.gz SRR1972917_2.trim.fastq.gz SRR1972917_2un.trim.fastq.gz SLIDINGWINDOW:4:20 MINLEN:25 ILLUMINACLIP:NexteraPE-PE.fa:2:40:15

    • Output:
     TrimmomaticPE: Started with arguments:
 SRR1972917_1.fastq.gz SRR1972917_2.fastq.gz SRR1972917_1.trim.fastq.gz SRR1972917_1un.trim.fastq.gz SRR1972917_2.trim.fastq.gz SRR1972917_2un.trim.fastq.gz SLIDINGWINDOW:4:20 MINLEN:25 ILLUMINACLIP:NexteraPE-PE.fa:2:40:15
 Multiple cores found: Using 4 threads
 Using PrefixPair: 'AGATGTGTATAAGAGACAG' and 'AGATGTGTATAAGAGACAG'
 Using Long Clipping Sequence: 'GTCTCGTGGGCTCGGAGATGTGTATAAGAGACAG'
 Using Long Clipping Sequence: 'TCGTCGGCAGCGTCAGATGTGTATAAGAGACAG'
 Using Long Clipping Sequence: 'CTGTCTCTTATACACATCTCCGAGCCCACGAGAC'
 Using Long Clipping Sequence: 'CTGTCTCTTATACACATCTGACGCTGCCGACGA'
 ILLUMINACLIP: Using 1 prefix pairs, 4 forward/reverse sequences, 0 forward only sequences, 0 reverse only sequences
 Quality encoding detected as phred33
 Input Read Pairs: 4377867 Both Surviving: 1241328 (28.35%) Forward Only Surviving: 2133670 (48.74%) Reverse Only Surviving: 18680 (0.43%) Dropped: 984189 (22.48%)
 TrimmomaticPE: Completed successfully

    • List out files created by Trimmomatic:
      $ ls SRR1972917*

    • Trimmed files should be smaller in size than our untrimmed fastq files

  2. Running a for loop on all fastq files

$ for infile in *_1.fastq.gz
    do
        base=$(basename ${infile} _1.fastq.gz)
        java -jar /usr/local/share/Trimmomatic-main/dist/jar/trimmomatic-0.40-rc1.jar PE ${infile} ${base}_2.fastq.gz
        ${base}_1.trim.fastq.gz ${base}_1un.trim.fastq.gz
        ${base}_2.trim.fastq.gz ${base}_2un.trim.fastq.gz
        SLIDINGWINDOW:4:20 MINLEN:25 ILLUMINACLIP:NexteraPE-PE.fa:2:40:15
    done
  1. Moving trimmed fastq files to a new directory:
    • We have now completed the trimming and filtering steps of our quality control process! Before we move on, let’s move our trimmed FASTQ files to a new subdirectory within our data/ directory

    $ cd ~/variant_calling/data/untrimmed_fastq
    $ mkdir -p ~/variant_calling/data/trimmed_fastq
    $ mv *trim* ~/variant_calling/data/trimmed_fastq
    $ cd ~/variant_calling/data/trimmed_fastq
    $ ls -al

  2. Lets rerun FastQC on the trimmed fastq files
    $ fastqc *trim.fastq.gz

4. Reference Based Mapping

  1. Aligning to a reference genome
    • We perform read alignment or mapping to determine where in the genome our reads originated from
    • There are a number of tools to choose from and, while there is no gold standard, there are some tools that are better suited for particular NGS analyses
    • We will be using the Burrows Wheeler Aligner (BWA), which is a software package for mapping low-divergent sequences against a large reference genome
    • The alignment process consists of two steps:
      • Indexing the reference genome
      • Aligning the reads to the reference genome
  2. Downloading reference genome
    • Navigate to NCBI and search for GenBank accession KJ660346.2 and download fasta file

    $ mkdir -p ~/variant_calling/data/ref_genome
    $ mv ~/Downloads/sequence.fasta ~/variant_calling/data/ref_genome/KJ660346.2.fasta
    $ cd ~/variant_calling/data/ref_genome

  3. Create directories for the results that will be generated as part of this workflow
    • We can do this in a single line of code, because mkdir can accept multiple new directory names as input
      $ cd ~/variant_calling/
      $ mkdir -p results/sam results/bam results/bcf results/vcf
  4. Index the reference genome
    • Our first step is to index the reference genome for use by BWA
    • Indexing allows the aligner to quickly find potential alignment sites for query sequences in a genome, which saves time during alignment
    • Indexing the reference only has to be run once
    • The only reason you would want to create a new index is if you are working with a different reference genome or you are using a different tool for alignment
      $ bwa index data/ref_genome/KJ660346.2.fasta
  5. Align reads to the reference genome
    • The alignment process consists of choosing an appropriate reference genome to map our reads against and then deciding on an aligner

    • We will use the BWA-MEM algorithm, which is the latest and is generally recommended for high-quality queries as it is faster and more accurate
      $ bwa mem data/ref_genome/KJ660346.2.fasta data/trimmed_fastq/SRR1972917_1.trim.fastq.gz data/trimmed_fastq/SRR1972917_2.trim.fastq.gz > results/sam/SRR1972917.aligned.sam

    • The SAM file, is a tab-delimited text file that contains information for each individual read and its alignment to the genome
    • The compressed binary version of SAM is called a BAM file
    • We use this version to reduce size and to allow for indexing, which enables efficient random access of the data contained within the file
    • The file begins with a header, which is optional
    • The header is used to describe the source of data, reference sequence, method of alignment, etc., this will change depending on the aligner being used
    • Following the header is the alignment section
    • Each line that follows corresponds to alignment information for a single read
    • Each alignment line has 11 mandatory fields for essential mapping information and a variable number of other fields for aligner specific information
    • An example entry from a SAM file is displayed below with the different fields highlighted

  6. Convert SAM file to BAM format
    $ samtools view -S -b results/sam/SRR1972917.aligned.sam > results/bam/SRR1972917.aligned.bam

  7. Sort BAM file by coordinates
    $ samtools sort -o results/bam/SRR1972917.aligned.sorted.bam results/bam/SRR1972917.aligned.bam

    • Lets take a look at the statistics in our BAM file:
      $ samtools flagstat results/bam/SRR1972917.aligned.sorted.bam

5. Variant Calling

A variant call is a conclusion that there is a nucleotide difference vs. some reference at a given position in an individual genome or transcriptome, often referred to as a Single Nucleotide Variant (SNV)

The call is usually accompanied by an estimate of variant frequency and some measure of confidence

Similar to other steps in this workflow, there are a number of tools available for variant calling

We will be using bcftools, but there are a few things we need to do before actually calling the variants

  1. Calculate the read coverage of positions in the genome
    $ bcftools mpileup -O b -o results/bcf/SRR1972917_raw.bcf -f data/ref_genome/KJ660346.2.fasta results/bam/SRR1972917.aligned.sorted.bam

  2. Detect the single nucleotide variants (SNVs)
    • Identify SNVs using bcftools call. We have to specify ploidy with the flag --ploidy, which is one for our Ebola genome. -m allows for multiallelic and rare-variant calling, -v tells the program to output variant sites only (not every site in the genome), and -o specifies where to write the output file:
      $ bcftools call --ploidy 1 -m -v -o results/vcf/SRR1972917_variants.vcf results/bcf/SRR1972917_raw.bcf
  3. Filter and report the SNV variants in variant calling format (VCF)
    • Filter the SNVs for the final output in VCF format, using vcfutils.pl:
      $ vcfutils.pl varFilter results/vcf/SRR1972917_variants.vcf > results/vcf/SRR1972917_final_variants.vcf

  4. Explore the VCF format:
    $ less -S results/vcf/SRR1972917_final_variants.vcf

    • You will see the header (which describes the format), the time and date the file was created, the version of bcftools that was used, the command line parameters used, and some additional information

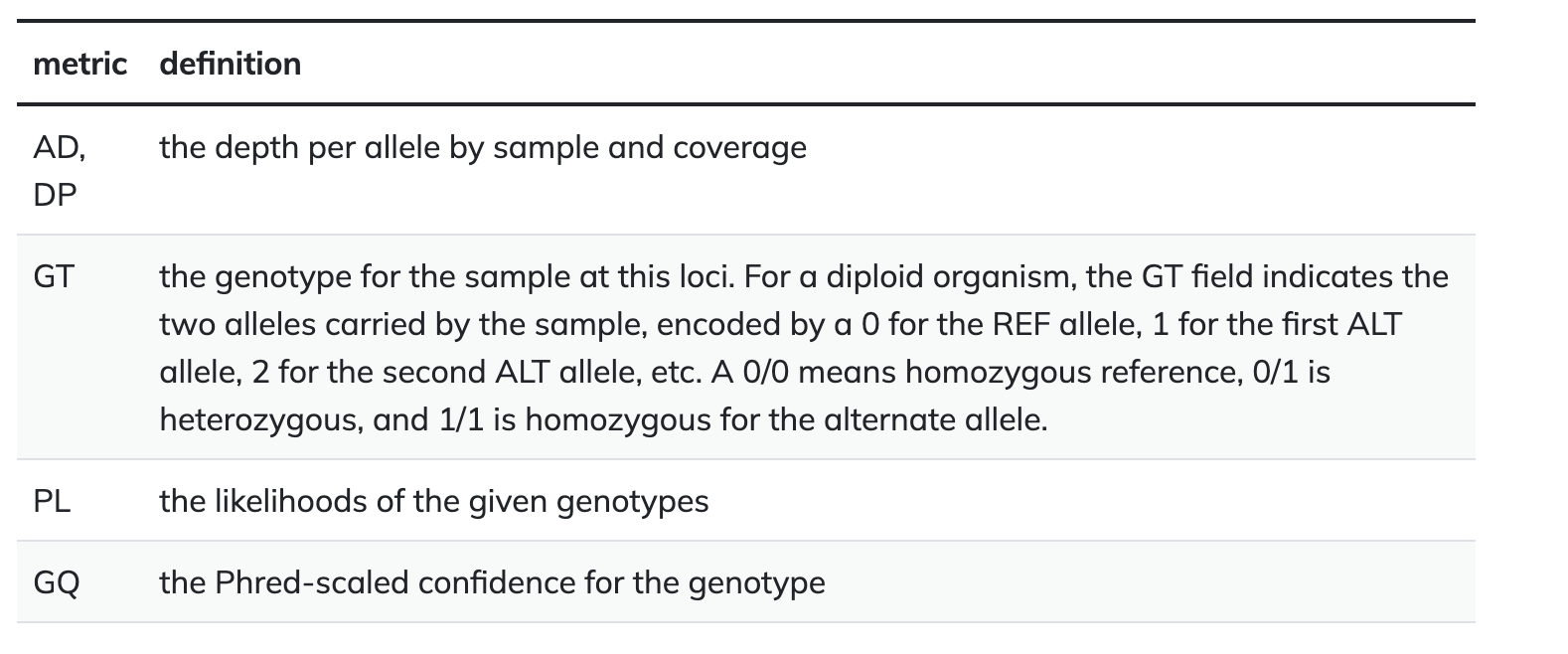

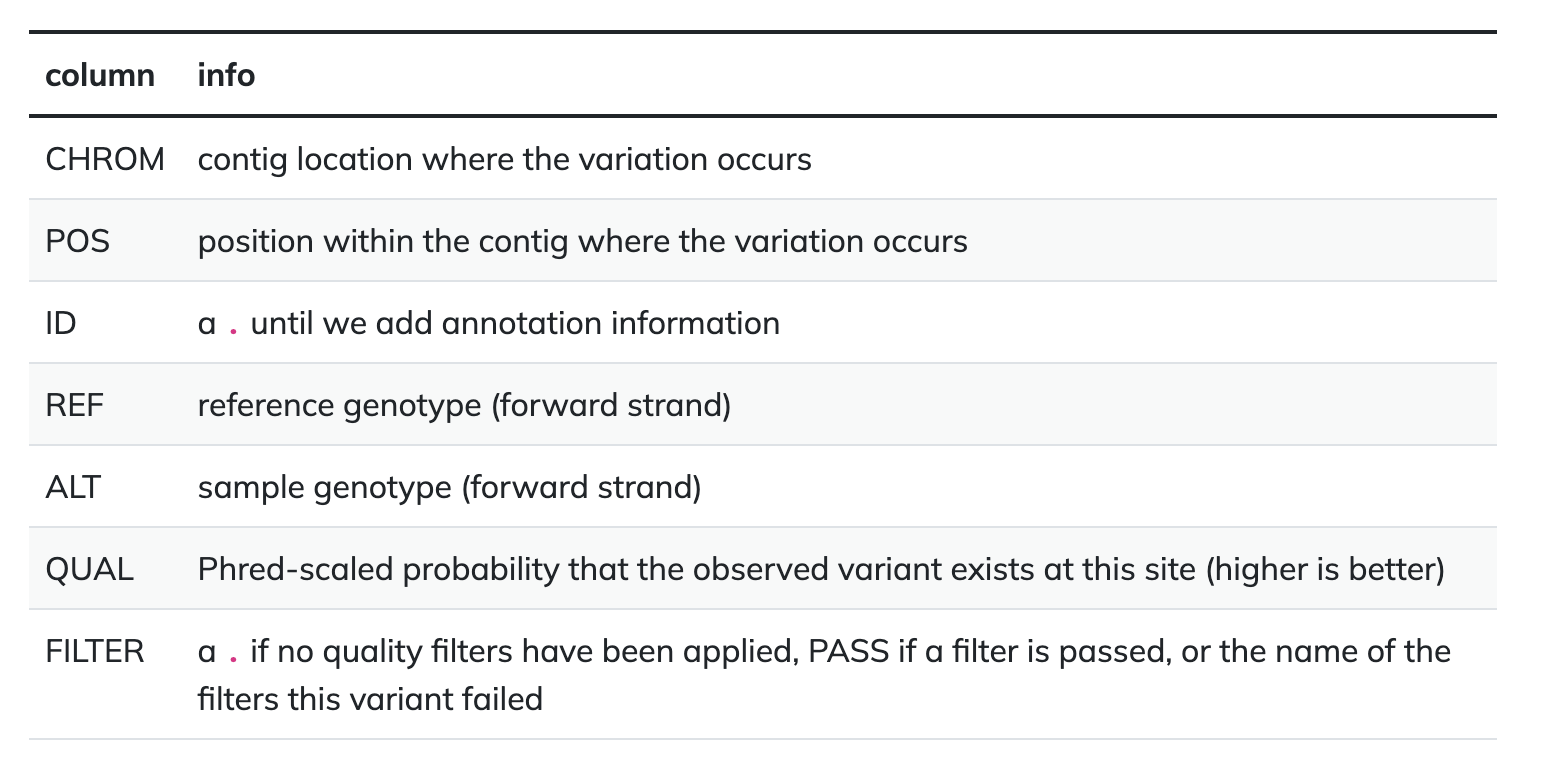

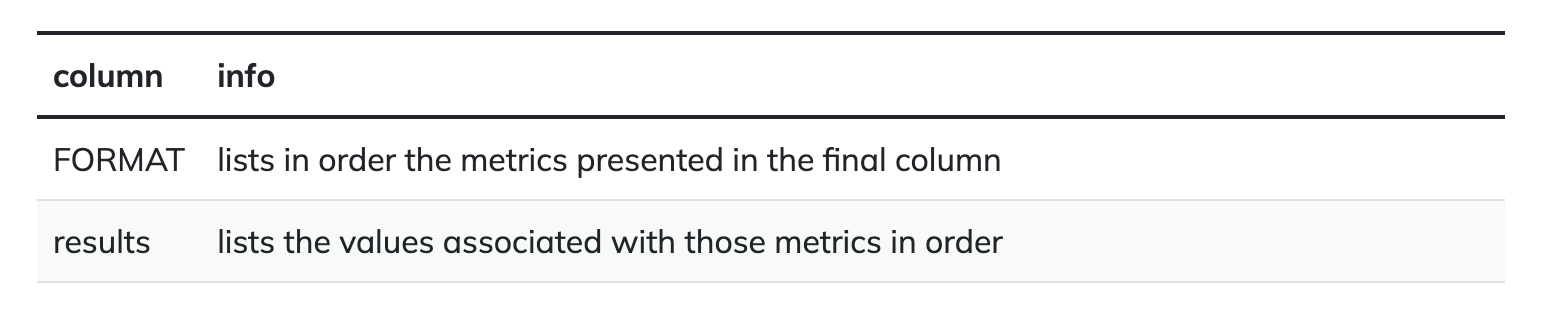

    • The first few columns represent the information we have about a predicted variation:

6. Visualizing the Results

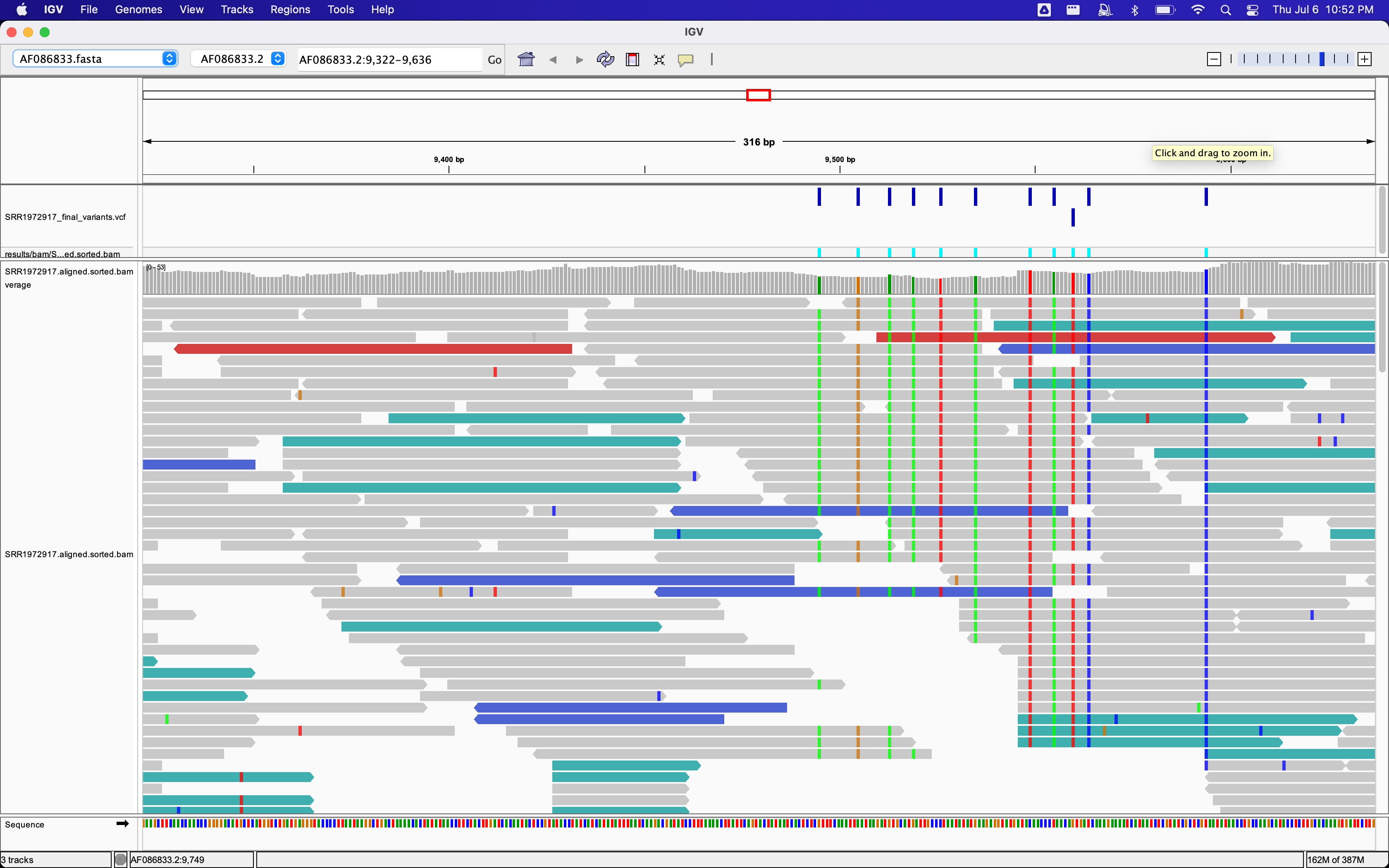

It is often instructive to look at your data in a genome browser

Visualization will allow you to get a “feel” for the data, as well as detecting abnormalities and problems

Also, exploring the data in such a way may give you ideas for further analyses

As such, visualization tools are useful for exploratory analysis

We will describe two different tools for visualization: a light-weight command-line based one and the Broad Institute’s Integrative Genomics Viewer (IGV) which requires software installation and transfer of files

  1. In order for us to visualize the alignment files, we will need to index the BAM file using samtools:
    $ samtools index results/bam/SRR1972917.aligned.sorted.bam
  2. Viewing with tview

    • In order to visualize our mapped reads, we use tview, giving it the sorted bam file and the reference file:
      $ samtools tview results/bam/SRR1972917.aligned.sorted.bam data/ref_genome/KJ660346.2.fasta

    • The first line of output shows the genome coordinates in our reference genome. The second line shows the reference genome sequence
    • The third line shows the consensus sequence determined from the sequence reads.
    • A . indicates a match to the reference sequence, so we can see that the consensus from our sample matches the reference in most locations
    • If that was not the case, we should probably reconsider our choice of reference
    • Below the horizontal line, we can see all of the reads in our sample aligned with the reference genome
    • Only positions where the called base differs from the reference are shown
    • You can use the arrow keys on your keyboard to scroll or type ? for a help menu
    • To navigate to a specific position, type g
    • A dialogue box will appear
    • In this box, type the name of the “chromosome” followed by a colon and the position of the variant you would like to view (e.g. for this sample, type CP000819.1:50 to view the 50th base. Type Ctrl^C or q to exit tview

  3. Viewing with IGV #### IGV is a stand-alone browser, which has the advantage of being installed locally and providing fast access. Web-based genome browsers, like Ensembl or the UCSC browser, are slower, but provide more functionality
    #### They not only allow for more polished and flexible visualization, but also provide easy access to a wealth of annotations and external data sources
    #### This makes it straightforward to relate your data with information about repeat regions, known genes, epigenetic features or areas of cross-species conservation, to name just a few

    1. Open IGV
    2. Load our reference genome file (KJ660346.2.fasta) into IGV using the “Load Genomes from File…” option under the “Genomes” pull-down menu
    3. Load our BAM file (SRR1972917.aligned.sorted.bam) using the “Load from File…” option under the “File” pull-down menu
    4. Do the same with our VCF file (SRR1972917_final_variants.vcf)
    • There should be two tracks: one coresponding to our BAM file and the other for our VCF file
    • In the VCF track, each bar across the top of the plot shows the allele fraction for a single locus
    • The second bar shows the genotypes for each locus in each sample
    • We only have one sample called here, so we only see a single line
    • Dark blue = heterozygous, Cyan = homozygous variant, Grey = reference
    • Filtered entries are transparent
    • Zoom in to inspect variants you see in your filtered VCF file to become more familiar with IGV
    • See how quality information corresponds to alignment information at those loci

7. Automating a Variant Calling Workflow

You wrote a simple shell script eariler in this tutorial

Shell scripts can be much more complicated than that and can be used to perform a large number of operations on one or many files

This saves you the effort of having to type each of those commands over for each of your data files and makes your work less error-prone and more reproducible

For example, the variant calling workflow we just carried out had about eight steps where we had to type a command into our terminal

If we wanted to do this for all eight of our data files, that would be forty-eight steps

If we had 50 samples, it would be 400 steps

We have also used for loops earlier to iterate one or two commands over multiple input files

In these for loops, the filename was defined as a variable in the for statement, which enables you to run the loop on multiple files

Running Trimmomatic on all samples:

$ for infile in *_1.fastq.gz
    do
        base=$(basename ${infile} _1.fastq.gz)
        trimmomatic PE ${infile} ${base}_2.fastq.gz
        ${base}_1.trim.fastq.gz ${base}_1un.trim.fastq.gz
        ${base}_2.trim.fastq.gz ${base}_2un.trim.fastq.gz
        SLIDINGWINDOW:4:20 MINLEN:25 ILLUMINACLIP:NexteraPE-PE.fa:2:40:15
    done

Notice that in this for loop, we used two variables, infile, which was defined in the for statement, and base, which was created from the filename during each iteration of the loop

We can extend these principles to the entire variant calling workflow.

To do this, we will take all of the individual commands that we wrote before, put them into a single file, add variables so that the script knows to iterate through our input files and write to the appropriate output files

Make a directory for automated variant calling script:

$ mkdir scripts
$ cd scripts/
$ touch run_variant_calling.sh

Our variant calling workflow has the following steps:

  1. Index the reference genome for use by bwa and samtools
  2. Align reads to reference genome
  3. Convert the format of the alignment to sorted BAM, with some intermediate steps
  4. Calculate the read coverage of positions in the genome
  5. Detect the SNVs
  6. Filter and report the SNVs in VCF

Let’s write our script, which should look like this:

#! bin/bash/

set -e
cd ~/variant_calling/results

genome=~/variant_calling/data/ref_genome/KJ660346.2.fasta

bwa index $genome

# makes directories (should already be made)
# mkdir -p sam bam bcf vcf

for fq1 in ~/variant_calling/data/trimmed_fastq/*_1.trim.fastq.gz
    do
    echo "working with file $fq1"

    base=$(basename $fq1 _1.trim.fastq.gz)
    echo "base name is $base"

    fq1=~/variant_calling/data/trimmed_fastq/${base}_1.trim.fastq.gz
    fq2=~/variant_calling/data/trimmed_fastq/${base}_2.trim.fastq.gz
    sam=~/variant_calling/results/sam/${base}.aligned.sam
    bam=~/variant_calling/results/bam/${base}.aligned.bam
    sorted_bam=~/variant_calling/results/bam/${base}.aligned.sorted.bam
    raw_bcf=~/variant_calling/results/bcf/${base}_raw.bcf
    variants=~/variant_calling/results/bcf/${base}_variants.vcf
    final_variants=~/variant_calling/results/vcf/${base}_final_variants.vcf

    bwa mem $genome $fq1 $fq2 > $sam
    samtools view -S -b $sam > $bam
    samtools sort -o $sorted_bam $bam
    samtools index $sorted_bam
    bcftools mpileup -O b -o $raw_bcf -f $genome $sorted_bam
    bcftools call --ploidy 1 -m -v -o $variants $raw_bcf
    vcfutils.pl varFilter $variants > $final_variants

    done

We change our working directory so that we can create new results subdirectories in the right location

$ cd ~/variant_calling/results

Next we tell our script where to find the reference genome by assigning the genome variable to the path to our reference genome:

$ genome=~/variant_calling/data/ref_genome/KJ660346.2.fasta

Now we want to index the reference genome for BWA:

$ bwa index $genome

We already have all the directories in results that are needed

What is in our automated variant calling script?

for fq1 in ~/variant_calling/data/trimmed_fastq/*_1.trim.fastq.gz
    do
    echo "working with file $fq1"

    base=$(basename $fq1 _1.trim.fastq.gz)
    echo "base name is $base"

    .# input fastq files
    fq1=~/variant_calling/data/trimmed_fastq/${base}_1.trim.fastq.gz
    fq2=~/variant_calling/data/trimmed_fastq/${base}_2.trim.fastq.gz

    # output files
    sam=~/variant_calling/results/sam/${base}.aligned.sam
    bam=~/variant_calling/results/bam/${base}.aligned.bam
    sorted_bam=~/variant_calling/results/bam/${base}.aligned.sorted.bam
    raw_bcf=~/variant_calling/results/bcf/${base}_raw.bcf
    variants=~/variant_calling/results/vcf/${base}_variants.vcf
    final_variants=~/variant_calling/results/vcf/${base}_final_variants.vcf

Now to the actual steps of the workflow:

  1. Align the reads to the reference genome and output a .sam file:

$ bwa mem $genome $fq1 $fq2 > $sam

  1. Convert the SAM file to BAM format:

$ samtools view -S -b $sam > $bam

  1. Sort the BAM file:

$ samtools sort -o $sorted_bam $bam

  1. Index the BAM file for display purposes:

$ samtools index $sorted_bam

  1. Calculate the read coverage of positions in the genome:

$ bcftools mpileup -O b -o $raw_bcf -f $genome $sorted_bam

  1. Call SNVs with bcftools:

$ bcftools call --ploidy 1 -m -v -o $variants $raw_bcf

  1. Filter and report the SNVs in a VCF:

$ vcfutils.pl varFilter $variants > $final_variants

Time to run the script!

$ bash run_variant_calling.sh

Now your automated variant calling script should be running!!!

Tip: using echo statements within your scripts is a great way to get an automated progress update

This site is open source. Improve this page.
